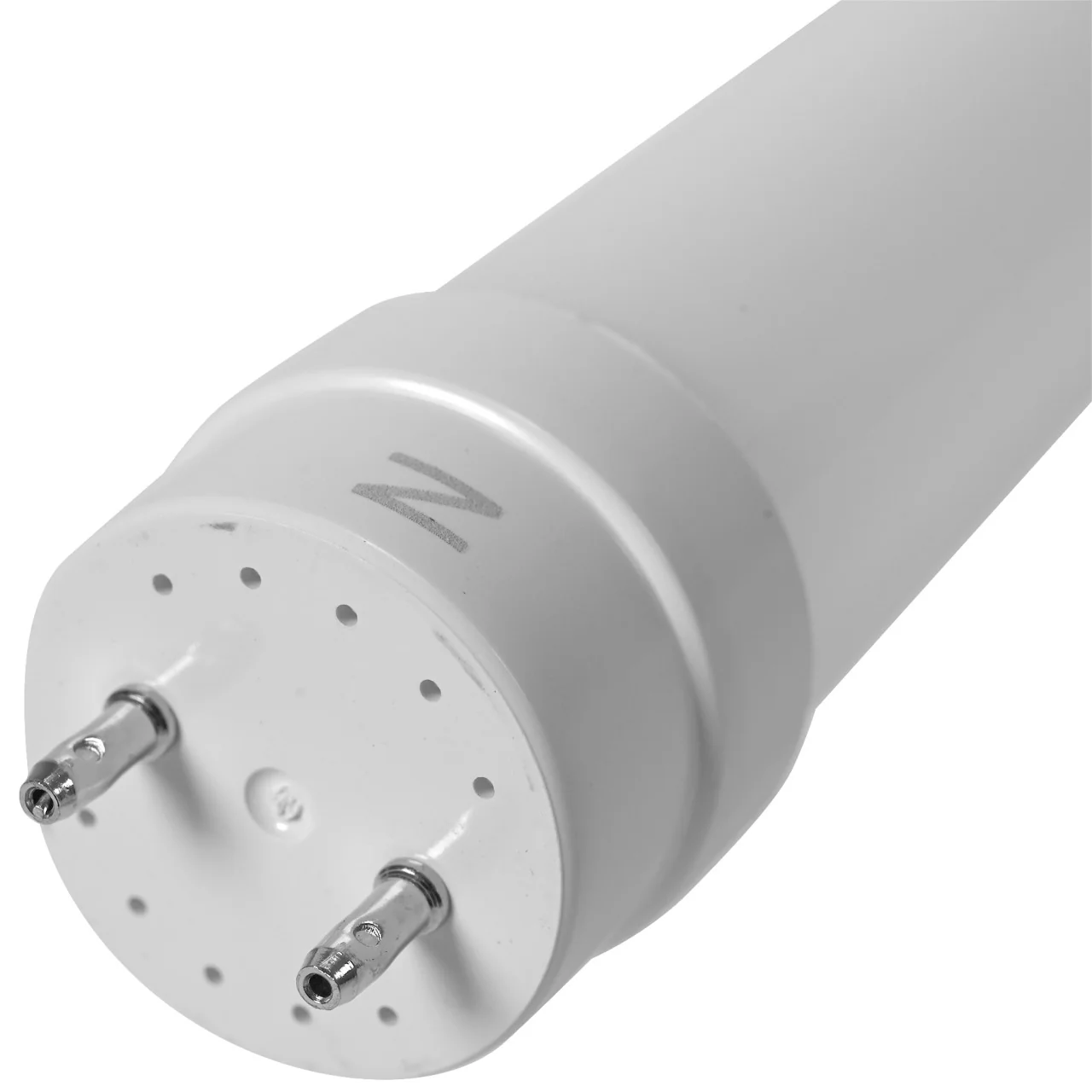

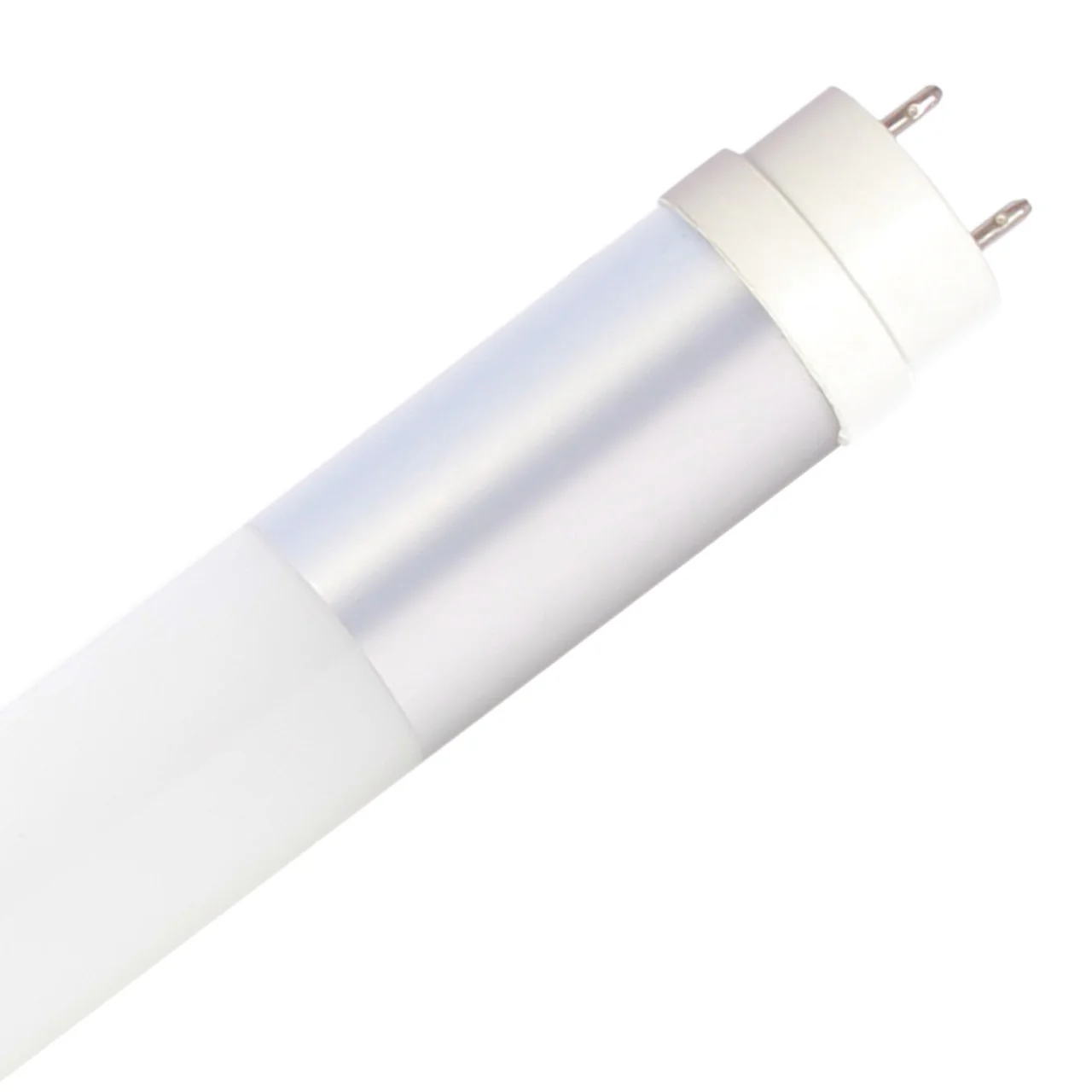

2ft LED T8 Glass Tube - Type B - 9W - 1150 Lumens- 3500K 4000K 5000K - LumeGen

2ft LED T8 Glass Tube - Type B - 9W - 1150 Lumens - LumeGen

This 2ft. LED T8 Direct Wire Glass Tube is a perfect pick for any commercial or residential setting including super markets, factories, hotels, conference rooms, schools, and offices. LED Tubes are more energy efficient and longer lasting than fluorescent tubes and contain no hazardous materials!

This LED Tube is configured for Double-Ended Power, meaning this tube has a live end and a neutral end and should be installed with shunted socket.

Existing fluorescent ballast must be bypassed for proper operation!

Specifications

• Type B
• 2ft. Length
• 9W
• 17W Fluorescent Tube Equivalent
• 1150 Lumens
• Available in 3500K, 4000K, and 5000K Color Temperatures
• 240° Beam Angle
• AC120-277V Input Voltage
• Double Ended Power
• Frosted Glass lens
• UL Listed, DLC Listed

Utility Rebates

This tube is DLC Standard V5.1 listed and may qualify for energy-saving rebates! Learn more about LED Rebates.

FAQs

Can you put led tube lights in a fluorescent fixture? Can I replace my fluorescent T8 linear bulbs with LEDs?

Yes! LED Tubes can be installed into a fluorescent fixture. When tubes are Type A + B. Type A or Type B, it is easy to replace those flickering fluorescents. A brief explanation of Type A and B LED linear tubes is below.

Type A LED Linear Tubes are often called "plug and play" tubes. This is because they can simply be installed into the existing fixture.

Type B LED Linear Tubes are often referred to as "ballast bypass." They work with all fluorescent fixtures including ballast-free fixtures. Type B linear tubes power goes directly to the lamp sockets and no longer through the ballast.

Type A + B can be used with or without a ballast. It is ultimately the buyer's preference what they want to do. Type A installation uses the LED Tube + Ballast power for more energy consumption compared to Type B installation only uses the raw tube power and is more energy-efficient.

What does ballast bypass mean? How does ballast bypass work?

Ballast bypass means when installing the LED linear tube, the fixture's ballast will need to be removed first. The power will then go directly to the lamp sockets and no longer through the ballast. The benefits of ballast bypass LED replacement tubes include lights not being shut down by a ballast failure, no more ballast replacements, and savings on the energy bill because energy is no longer drawing from the ballast.

Need more lighting options? Explore flat panels, solar lighting, and more from LumeGen.
